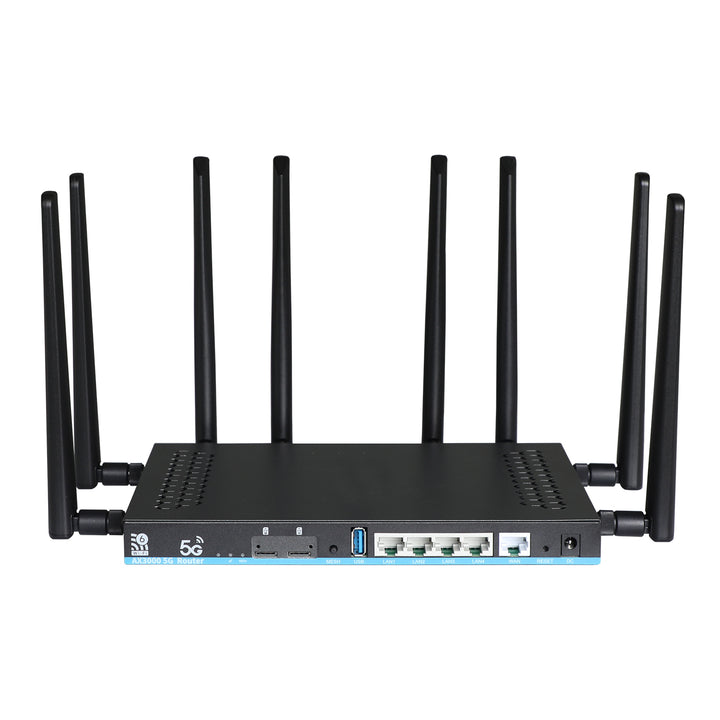

Z8102AX-T 5G SA NSA AX3000 WiFi 6 Dual SIM Card Wireless CPE

$389.99

Hardware function Hardware Interface Introduction Network ports 1*WAN port, 1000Mbps supports automatic flip (Auto MDI/MDIX) Conforms to IEEE 802.3/802.3u/802.ab 4* LAN port, 1000Mbps supports automatic flip (Auto MDI/MDIX) Conforms to IEEE...

Ask a Question
Type: US Plug, EU Plug
SKU: Z8102AX-T
Availability : In Stock Pre order Out of stock
Categories: 5G LTE Router, All Products

Type: US Plug

US Plug
EU Plug
Add to WishlistCompare
Description
Product Details
Parameters

Hardware function

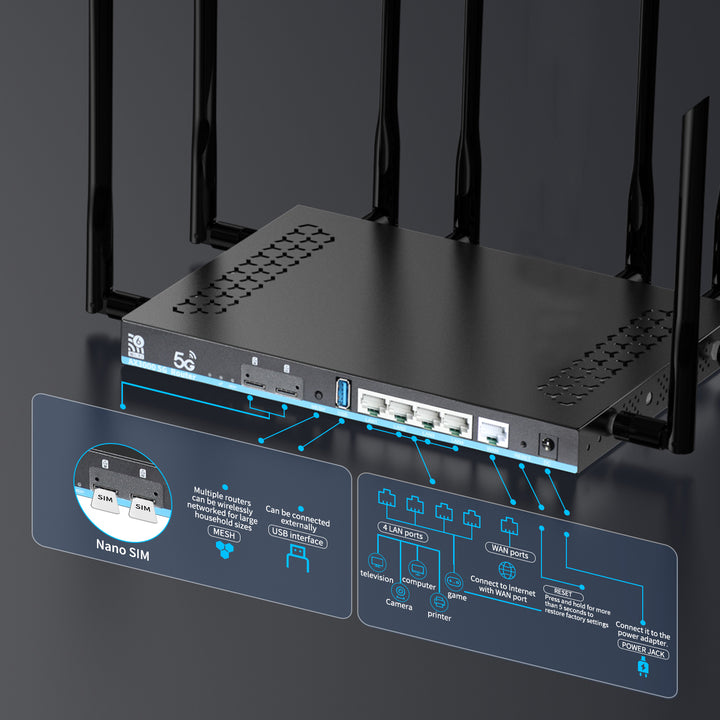

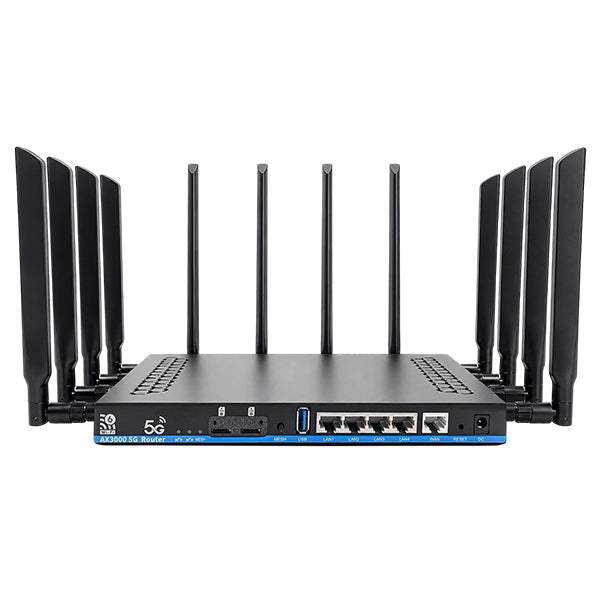

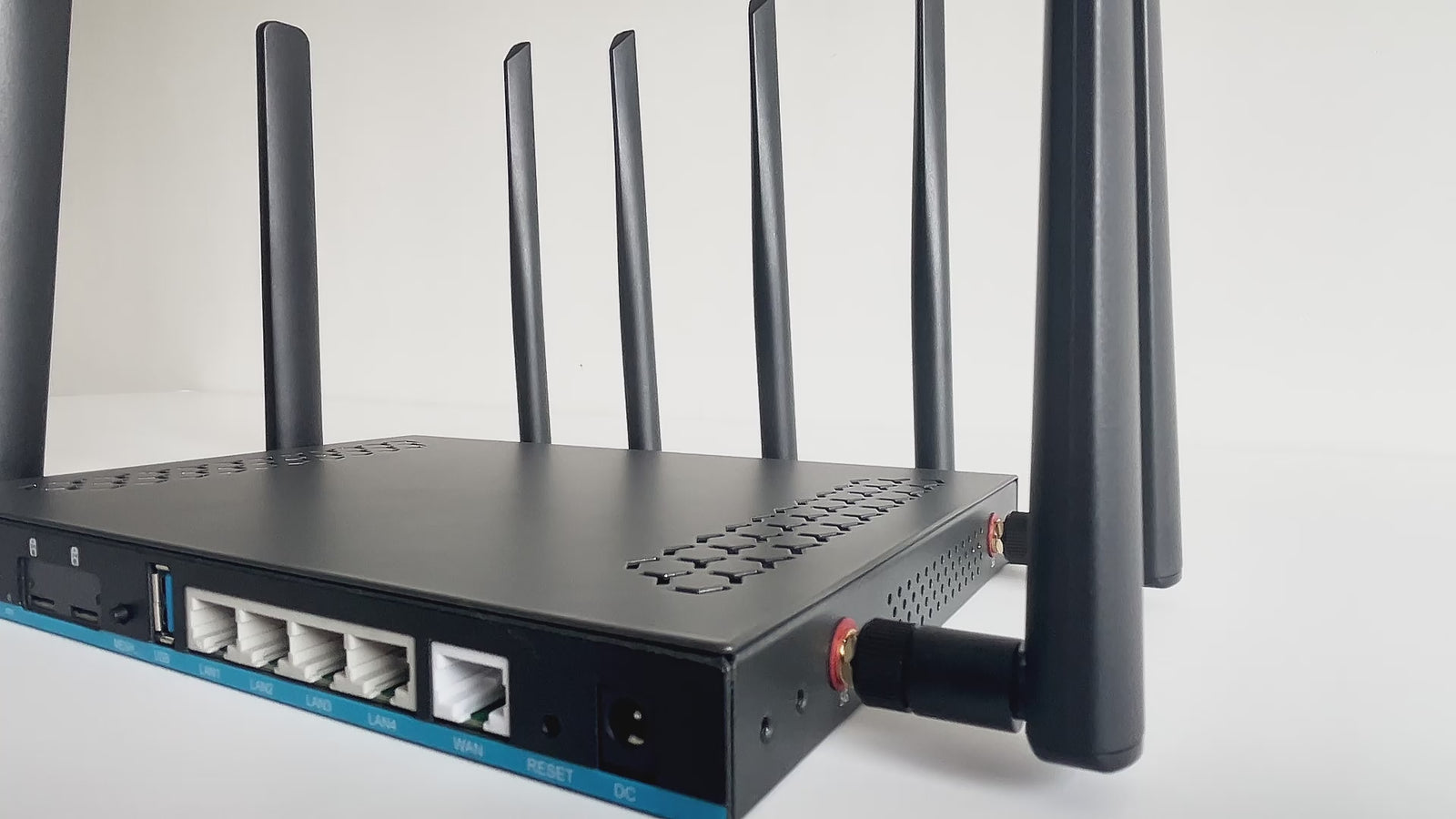

Hardware Interface Introduction

Network ports

1*WAN port, 1000Mbps supports automatic flip (Auto MDI/MDIX)

Conforms to IEEE 802.3/802.3u/802.ab

4* LAN port, 1000Mbps supports automatic flip (Auto MDI/MDIX)

Conforms to IEEE 802.3/802.3u/802.ab

Power interface

DC5.5*2.1MM

Button

1* Reset button,1* MESH button.

USB port

1*USB3.0 TYPE A port

Sim card slot

2* External standard Nano SIM card interfaces and 2* built-in eSIM(QFN-8 6mmx5mm) surface mount cards

4G/5G interface

2 *M.2 Ports

Antennas

8* external omnidirectional 5dbi 5G mobile communication antennas

2* external omnidirectional 5dbi 2.4G wifi antennas

2* external omnidirectional 5dbi 5.8G wifi antennas



Indicator light function introduction

MESH LED

1. During the device startup, the red light will turn on. After the startup, the red light will turn off and the green light will turn on;



2. First time switch to Mesh mode by presses the button, the main device light turn red and restart network, after network restart completed, back to normal condition of cyan light, second time press button to enter paring mode (same for slave device);



3. The main device network is normal, both green and blue lights on (cyan);



4. When slave device in paring mode, main/slave device 2.4G or 5.8 light would flash,Mesh successful if slave device light cyan color;

5G1 LED

Light is always on when access the network , and flashes when there is data communication

5G2 LED

Light is always on when access the network , and flashes when there is data communication



Hardware Platform Introduction

Processor

MT7981B ARM Cortex-A53 dual-core CPU, 1.3GHZ main frequency

WIFI Chip

MT7976CN  IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps

RAM

DDR4 1GB

Flash

Nor Flash 16MB(Optional)

SPI NAND Flash 128MB

EMMC 8GB (Optional)

Power Supply And Power Consumption Description



Test Conditions

Min

Rated Value

Max

Unit

Operating Voltage

T A = 25°C

9

12

35

V

Absolute working voltage

T A = 25°C

8.5



36

V

Working current

VIN=12V，T A = 25°C

0.6

1,2

2.5

A

WIFI Wireless Parameter Introduction

WIFI EVM Index



Mode Description

Index parameter

Unit

EVM index

802.11B 11Mbps

≤ -1 5 dB

dBm

802.11G 54 Mbps

≤ -25 dB

dBm

802.11N HT20@ MCS7

≤ -28 dB

dBm

802.11N HT40@ MCS7

≤ -28 dB

dBm

802.11AC VHT20@ MCS8

≤ -30 dB

dBm

802.11AC VHT40@ MCS9

≤ -32 dB

dBm

802.11AC VHT80@ MCS9

≤ -32 dB

dBm

802.11AX HE20@MCS 11

≤ -35 dB

dBm

802.11AX HE40@MCS 11

≤ -35 dB

dBm

802.11AX HE80@MCS 11

≤ -35dB

dBm



WiFi 2.4G



illustrate

Max

Rated Value

Min

Unit

Working frequency



2484



2412

MHz

Receive sensitivity

802.11B 11Mbps

-86

-87

-88

dBm

802.11G 54 Mbps

-71

-73

-75

dBm

802.11N HT20@ MCS7

-68

-70

-72

dBm

802.11N HT40@ MCS7

-66

-68

-70

dBm

802.11AC VHT20@ MCS8

-64

-66

-68

dBm

802.11AC VHT40@ MCS9

-62

-64

-66

dBm

802.11AX HE20@MCS11

-60

-62

-64

dBm

802.11AX HE40@MCS11

-58

-60

-62

dBm

Transmit power

802.11B 11Mbps

22

21

20

dBm

802.11G 54 Mbps

20

19

18

dBm

802.11N HT20@ MCS7

19

18

17

dBm

802.11N HT40@ MCS7

19

18

17

dBm

802.11AC VHT20@ MCS8

18

17

16

dBm

802.11AC VHT40@ MCS9

18

17

16

dBm

802.11AX HE20@MCS11

17

16

15

dBm

802.11AX HE40@MCS11

17

16

15

dBm



WiFi 5.8G



illustrate

Max

Rated Value

Min

Unit

Working frequency



5825



5180

MHz

Receive sensitivity

802.11G 54 Mbps

-70

-72

-74

dBm

802.11N HT20@ MCS7

-68

-70

-72

dBm

802.11N HT40@ MCS7

-66

-68

-70

dBm

802.11AC VHT20@ MCS8

-64

-66

-68

dBm

802.11AC VHT40@ MCS9

-62

-64

-66

dBm

802.11AC VHT80@ MCS9

-60

-62

-64

dBm

802.11AX HE20@MCS 11

-58

-60

-62

dBm

802.11AX HE40@MCS 11

-55

-57

-59

dBm

802.11AX HE80@MCS 11

-53

-55

-57

dBm

Transmit power

802.11G 54 Mbps

20

19

18

dBm

802.11N HT20@ MCS7

19

18

17

dBm

802.11N HT40@ MCS7

18

17

16

dBm

802.11AC VHT20@ MCS8

18

17

16

dBm

802.11AC VHT40@ MCS9

17

16

15

dBm

802.11AC VHT80@ MCS9

16

15

14

dBm

802.11AX HE20@MCS 11

18

17

16

dBm

802.11AX HE40@MCS 11

17

16

15

dBm

802.11AX HE80@MCS 11

16

15

14

dBm

Structural Parameters And Accessories Introduction

Weight(KG)

16.86kg for one carton(10pcs)

Carton box size

L*W*H=362*320*500mm

Device size

L*W*H=235*165*23MM

Color

Black

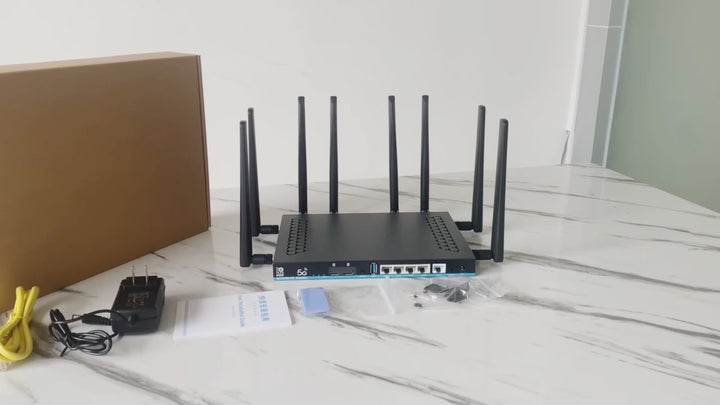

Accessories

Power adapter

12V/2.5A 1pc

Manual

1pc

Certificate

1pc

Cable

8P8C Network cable 1pc



Product Working Environment Requirements

Operating temperature

0℃ to 40℃

storage temperature

-40℃to 70℃

Working humidity

10% to 90%RH non-condensing

storage humidity

5% to 90%RH non-condensing



Software Configuration Information

Default IP

192.168.1.1

Username Password

root/admin

2.4G SSID

WIFI-XXXXXX (X is the last 6 digits of the MAC address), no password by default

5.8G SSID

WIFI-5G-XXXXXX (X is the last 6 digits of the MAC address), no password by default
