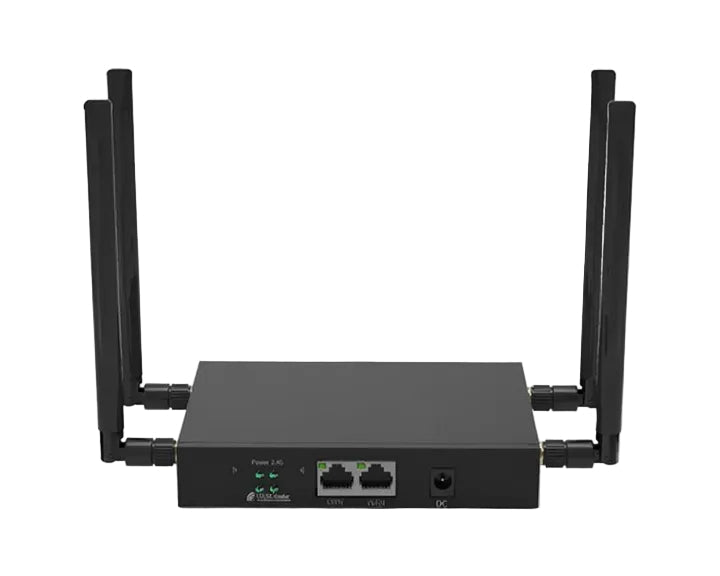

WD523 – Industrial 4G LTE Router, RS232/RS485 & Mini-PCIe 9-32V

Multi-Band 4G: Supports listed LTE, WCDMA, GSM, GPRS, and EDGE bands.

300Mbps Wi-Fi: Up to 300Mbps on the 2.4GHz band.

Device Connectivity: Includes 100Mbps WAN and LAN, RS485, and RS232 ports.

Detachable Antennas: Four 1.5m SMA antennas for flexible placement.
Enter your email at the bottom Support B2B cooperation and customize solutions

Out of stock

Estimated delivery: Sep 13 - Sep 17
WD523 – Industrial 4G LTE Router, RS232/RS485 & Mini-PCIe 9-32V
$0.00 USD
View details
Category Specifications
Model WD523
Main chipset MTK7628DA
CPU architecture MIPS 24KC
CPU frequency 580MHz
Wi-Fi chipset Integrated MTK7628AN 2.4GHz Wi-Fi function
Protocol IEEE 802.11 n/g/b
Wi-Fi rate Up to 300Mbps
Memory / Flash Integrated 64MB DDR2 / 8MB NOR Flash
Interfaces 1 × 100Mbps WAN port; 1 × 100Mbps LAN port
Other ports 1 × 6-pin port; 1 × RS485 port; 1 × RS232 port; 1 × DC 5.0 × 2.1mm port supporting 9–32V
Button 1 × Reset button
Module slot 1 × mini-PCIe slot
LTE FDD bands B1/B3/B7/B8/B20
LTE TDD bands B38/B40/B41
WCDMA bands B1/B5/B8
GSM/GPRS/EDGE bands B2/B3/B5/B8
Supported regions shown Europe, Asia, Africa
SIM card slot 1 × standard SIM card slot
Antennas 4 × detachable SMA antennas, 1.5m length
Mobile network shown 4G
