Z8806BE-DS-T+RM500UEA

$223.20

Z8806BE-DS-T + RM500UEA — Industrial 5G CPE Router The Z8806BE-DS-T paired with the RM500UEA module delivers enterprise-grade 5G Sub-6GHz connectivity for demanding outdoor and industrial deployments. Engineered for reliability in harsh...

Add to WishlistCompare
Parameters

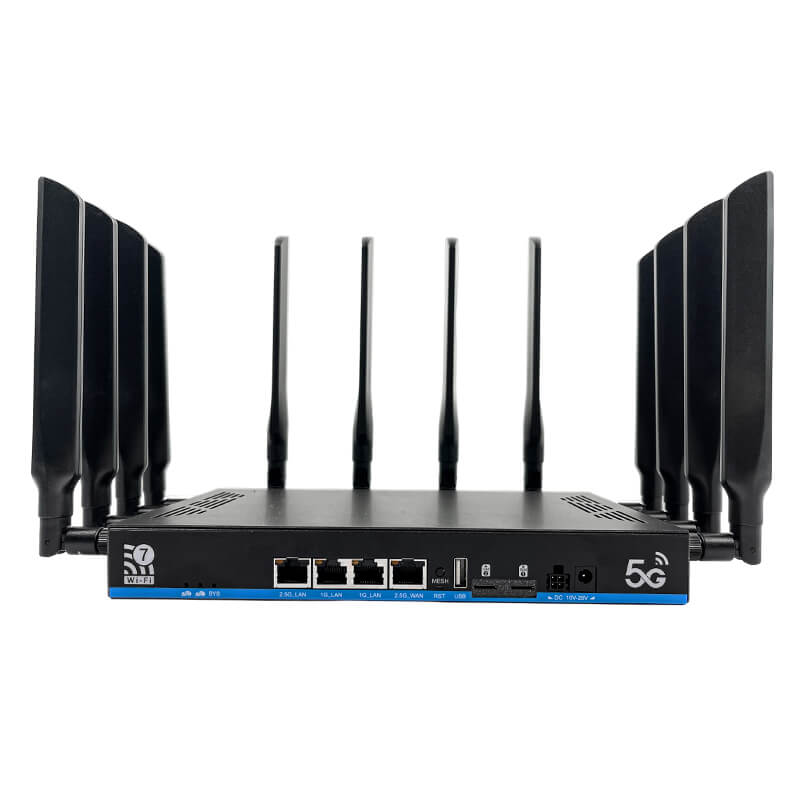

Z8806BE-DS-T + RM500UEA — Industrial 5G CPE Router

The Z8806BE-DS-T paired with the RM500UEA module delivers enterprise-grade 5G Sub-6GHz connectivity for demanding outdoor and industrial deployments. Engineered for reliability in harsh environments, this solution combines high-speed cellular performance with robust hardware design.

Key Features

  • 5G Sub-6GHz with RM500UEA module support (SA/NSA dual mode)
  • Dual SIM failover for uninterrupted connectivity
  • High-gain antennas for extended signal coverage
  • Industrial-grade design with wide temperature tolerance
  • Gigabit Ethernet WAN/LAN ports
  • VPN support: OpenVPN, IPsec, L2TP, PPTP
  • Remote management via TR-069, SNMP, Web UI, CLI

Cellular Specifications

  • Module: Quectel RM500UEA
  • Technology: 5G NR Sub-6GHz / LTE-A / WCDMA
  • 5G Downlink: Up to 2.1 Gbps
  • 5G Uplink: Up to 900 Mbps
  • LTE Downlink: Up to 1 Gbps (Cat.20)
  • LTE Uplink: Up to 200 Mbps
  • SIM Slots: 2 × Nano SIM (Dual SIM Single Standby)

5G Frequency Band Information

  • 5G NR NSA: n1 / n3 / n7 / n28 / n38 / n40 / n41 / n77 / n78
  • 5G NR SA: n1 / n3 / n5 / n7 / n8 / n20 / n28 / n38 / n40 / n41 / n66 / n77 / n78
  • LTE-FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B20 / B28 / B66
  • LTE-TDD: B38 / B40 / B41
  • WCDMA: B1 / B2 / B5 / B8

Network & Interfaces

  • WAN: 1 × Gigabit Ethernet
  • LAN: 4 × Gigabit Ethernet
  • Wi-Fi: 802.11 a/b/g/n/ac (2.4G + 5.8G dual-band)
  • Antenna: External high-gain 5G/LTE antennas
  • GPS: Optional

Hardware

  • CPU: Quad-core ARM processor
  • RAM: 512 MB DDR3
  • Flash: 256 MB NAND
  • Power Input: DC 9~36V wide voltage
  • Power Consumption: ≤ 25W (typical)
  • Operating Temperature: -40°C to +75°C
  • Storage Temperature: -40°C to +85°C
  • Humidity: 5%~95% RH (non-condensing)
  • Enclosure: IP30 metal housing
  • Dimensions: 220 × 140 × 45 mm (approx.)

Software & Management

  • Web-based GUI management
  • CLI (SSH/Telnet)
  • TR-069 / SNMP v1/v2c/v3
  • VLAN, QoS, Firewall, NAT, DMZ
  • VPN: OpenVPN, IPsec, L2TP, PPTP, GRE
  • Dynamic DNS (DDNS)
  • Watchdog & auto-recovery
  • OTA firmware upgrade

Certifications & Compliance

  • CE / FCC / RoHS
  • 3GPP Release 15/16 compliant

Ideal Applications

  • Industrial IoT & M2M connectivity
  • Smart city infrastructure
  • Video surveillance backhaul
  • Emergency communications
  • Transportation & fleet management
  • Remote site broadband access
