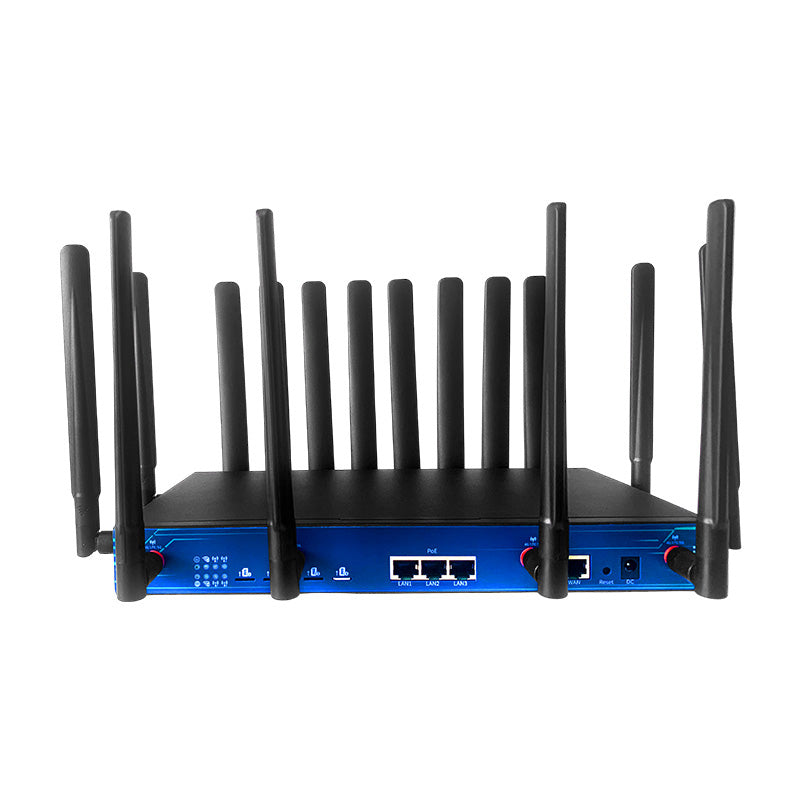

Z8109AX-M2-T-PSE 5G WiFi 6 Router | 4× M.2 + 4× Nano SIMMT7981B, AX3000, PoE, 16 Antennas

Main Chipset: MT7981B ARM Cortex-A53 dual-core 1.3GHz, with MT7976CN WiFi chipset.

Wi-Fi Standard & Rate: IEEE 802.11n/g/b/a/ac/ax; up to 573Mbps at 2.4GHz and 2402Mbps at 5.8GHz, 2975Mbps total.

Ethernet & PoE: 1×1000Mbps WAN plus 3×1000Mbps LAN ports; IEEE 802.3af/at standard PoE support.

SIM & Antenna: 4×Nano SIM and 4×eSIM card slots with 16 detachable high-gain SMA antennas.
Enter your email at the bottom Support B2B cooperation and customize solutions

Out of stock

Estimated delivery: Sep 13 - Sep 17
Z8109AX-M2-T-PSE 5G WiFi 6 Router | 4× M.2 + 4× Nano SIMMT7981B, AX3000, PoE, 16 Antennas
$0.00 USD
View details
Category Specifications
CPU Main chipset MT7981B ARM Cortex-A53 dual-core CPU, 1.3GHz frequency; WiFi chipset: MT7976CN
Protocol IEEE 802.11n/g/b/a/ac/ax
Wi-Fi rate 2.4GHz MAX 573Mbps and 5.8GHz MAX 2402Mbps, total 2975Mbps
Flash/RAM DDR4 512MB (option 256MB/1GB), supports eMMC (option 8GB/256GB), Nor Flash 16MB, SPI NAND Flash 128MB (option 128MB/256MB)
Interface 1×1000Mbps WAN port and 3×1000Mbps LAN ports, supports IEEE 802.3af/at standard PoE; Port: DC 5.5×2.1mm
Button 1×Reset button
Module slot 4×M.2 slots, supports USB3.0 bus
SIM card slot 4×Nano SIM card slots and 4×eSIM (6×8mm) card slots
Antenna 16×detachable high-gain SMA antennas
