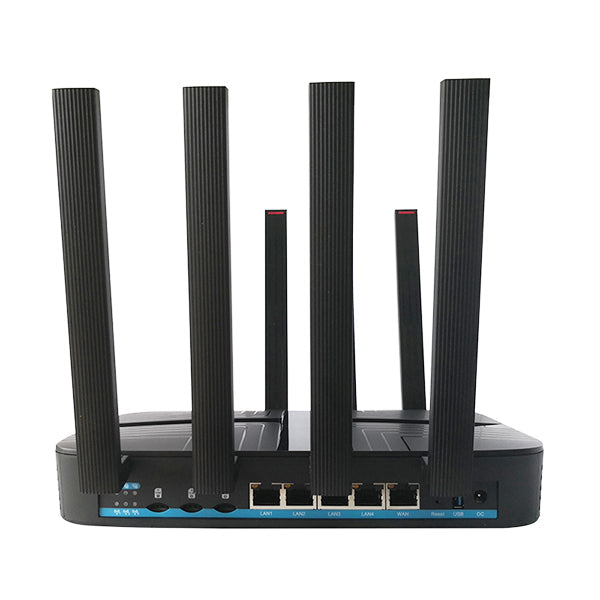

WG1402 IPQ4019 4G LTE Router | 3x Mini-PCIe, 3x Nano SIM, MU-MIMO, Gigabit, Global LTE Bands

Triple-Module, Triple-SIM Design: Three Mini PCIe slots and three Nano SIM card slots for flexible connectivity.

Dual-Band MU-MIMO Wi‑Fi: Up to 300Mbps at 2.4GHz and 867Mbps at 5.8GHz, with 1167Mbps total throughput.

Gigabit Connectivity: Includes 1×1000Mbps WAN port, 3×1000Mbps LAN ports, USB 3.0, and a DC 5.5×2.1mm port.

Multi-Band LTE Support: Supports listed LTE-FDD, LTE-TDD, WCDMA, and GSM/GPRS/EDGE bands, with 8 non-detachable high-gain antennas.
Enter your email at the bottom Support B2B cooperation and customize solutions

Out of stock

Estimated delivery: Sep 12 - Sep 16
WG1402 IPQ4019 4G LTE Router | 3x Mini-PCIe, 3x Nano SIM, MU-MIMO, Gigabit, Global LTE Bands
$0.00 USD
View details
Category Specifications
CPU IPQ4019 solution; four-core ARM Cortex-A7 CPU, 761.8MHz frequency. Integrated 2.4GHz and 5.8GHz Wi-Fi with MU-MIMO support on both bands
Protocol IEEE 802.11n/g/b/a/ac
Wi-Fi Rate 2.4GHz maximum 300Mbps; 5.8GHz maximum 867Mbps; total 1167Mbps
Flash/RAM DDR3 256MB, NOR Flash 32MB
Interface 1×1000Mbps WAN port and 3×1000Mbps LAN ports
Port 1×USB 3.0 port and 1×DC 5.5×2.1mm port
Button 1×Reset button
4G Port 3×Mini PCIe slots
4G Bands LTE-FDD B1/B3/B7/B8/B20; LTE-TDD B38/B40/B41; WCDMA B1/B5/B8; GSM/GPRS/EDGE B2/B3/B5/B8; supports Europe/Asia/Africa
SIM Card Slot 3×Nano SIM card slots
Antenna 8×non-detachable high-gain antennas
