WD523 uses MT7628DA chip to integrate 2.4G WIFI function with a rate of up to 300Mbps. MT7628DA chip integrates 64MB DDR2, with 8MB Nor Flash, 1WAN, 1LAN full 100M adaptive network port, supports 1 RS232 and 1 RS485 serial communication interface
|
Hardware features |
|
|
CPU |
MT7628DA，580MHZ |
|
Interface |
1*10/100/1000 Mbps WAN 1 * sim slot 1 * PCIE slot |
|
Reset |
1 Reset Button |
|
Power Supply |
Support 9-32V |
|
environment |
Operating temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉) |
|
Antenna |

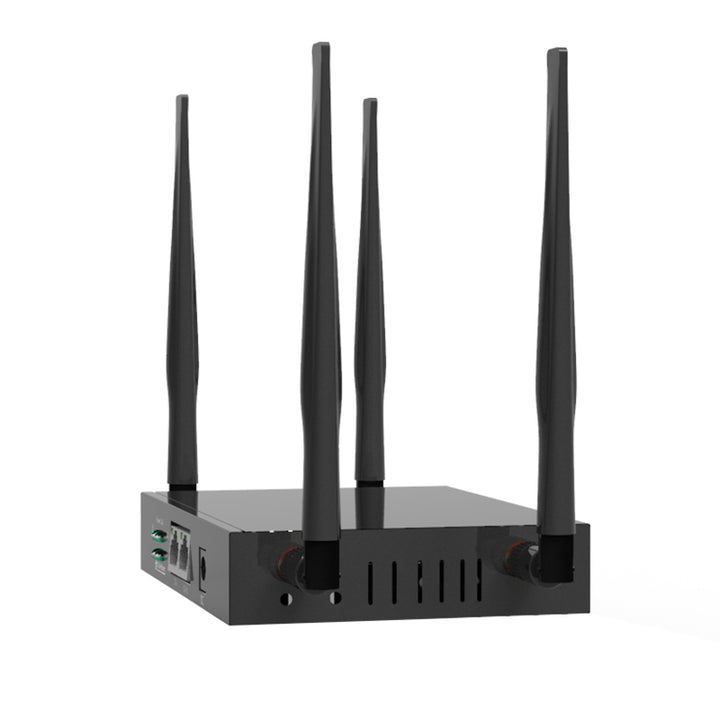

4 × detachable high-gain antennas |
|
wireless function |
|
|
wireless standards |
IEEE 802.11a、IEEE 802.11n、IEEE 802.11g、IEEE 802.11b; |
|
frequency |
2.4 GHz |
|
Wireless speed |
2.4G 300Mbps |
|
wireless security |
WPA/WPA2、WPA-PSK |
|
Software function |
|
|
WAN Type |
PPPoE.Dynamic IP. Static IP |
|
Port Forwareding |
Support |
|
static router |
Support |
|
System log |
Support |
| Black list | Support |
| Cloud management | Support |
|
NTP |
Support |
|
DHCP |
Support |
|
VPN |
Support |
Maximize Connectivity and Reliability
Experience seamless connectivity in industrial environments with the WD523 RS232/RS485 4G Industrial Router. Powered by the robust MT7628DA chip running at 580MHz, this router ensures stable performance and high-speed data transmission. With 512MB of RAM and up to 32MB of flash storage, it offers ample capacity for data processing and storage.
Versatile Interface Options for Enhanced Functionality

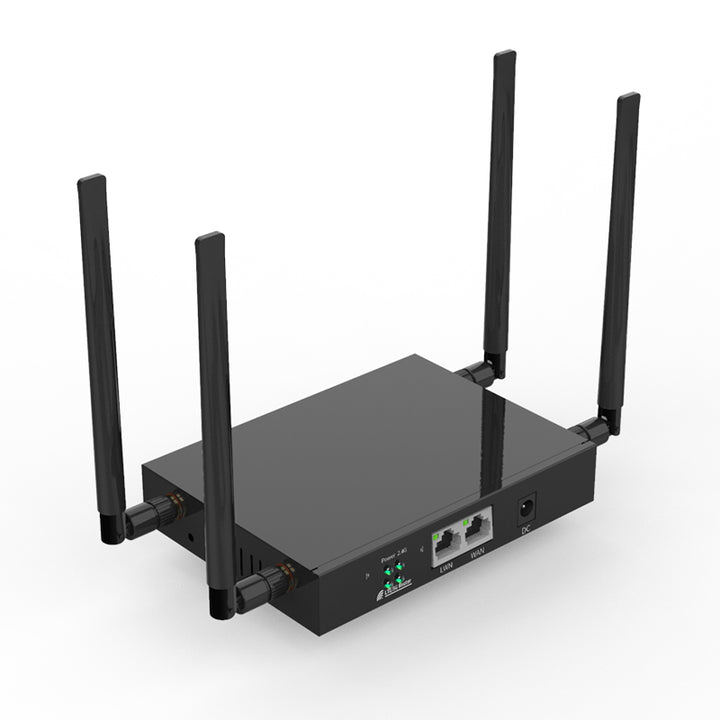

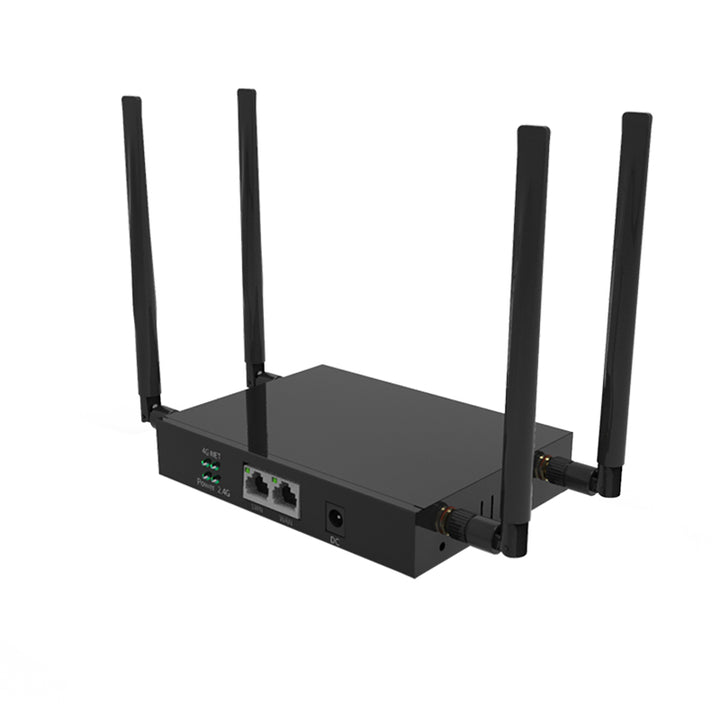

The WD523 is designed with versatility in mind, featuring a comprehensive interface that includes 1 WAN port, 1 LAN port, 1 SIM slot, and 1 PCIE slot. This allows for flexible connectivity options, including RS232 and RS485 serial communication interfaces, ideal for industrial applications requiring reliable data exchange.
Advanced Software Features for Enhanced Network Management
Equipped with Openwrt or ZBT OS, the WD523 offers a range of advanced software features to streamline network management. From supporting various WAN types such as PPPoE, Dynamic IP, and Static IP to facilitating port forwarding, static routing, system logging, and blacklisting, this router empowers users with efficient control over their network infrastructure. Additionally, with support for cloud management, NTP, DHCP, and VPN, it ensures seamless integration into existing network environments while enhancing security and performance.
-
