Z8106AX-M2-S is a 5G/4G+WiFi6 CPE router, which can access the Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, and then share the Internet network through wireless WiFi 6 and 1000Mbps/2.5G wired LAN.
|
HARDWARE FEATURES |
|
|
CPU |
ARM Cortext-A53 dual-core CPU, main frequency up to 1.3GHZ |
|
Interface |
1 *1000/2500Mbps WAN Port 1 *M.2 slot |
|
Button |
Reset Button |
|
External Power Supply |
Power Adapter: Input Power 100-240v~50/60 Hz 0.6A |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
|
Antenna |
9pcs Internal High Gain Antennas |
|
WIRELESS FEATURES |
|
|
Wireless Standards |
IEEE 802.11a/n/ac/ax 5.8GHz, IEEE 802.11b/g/n/ac/ax 2.4GHz |
|
Frequency |
2.4GHz and 5.8GHz |
|
Signal Rate |
600Mbps at 2.4GHz, 2400Mbps at 5.8GHz |
|
Wi-Fi Max.Associated Clients |
128 |
|
WAN Failover |
Yes |
|
Wireless Security |
WPA/WPA2, WPA-PSK |
|
SOFTWARE FEATURES |
|
|
Channel adjustment |
Support |
|
Power adjustment |
Support |
|
Parent control |
Support |
|
SSID Hidden |
Support |
|
Black list |
Support |
|
Cloud management |
Support |
|
NTP |
Support |
|
DHCP |
Support |
|
VPN |
Support |
Experience Unmatched Connectivity with Z8106AX-M2-S: Powering Your Network with 5G and WiFi 6
Next-Level Connectivity: The Z8106AX-M2-S Advantage
Enter a new era of connectivity with Z8106AX-M2-S, a 5G/4G+WiFi6 CPE router designed to revolutionize your network experience. With the ability to access the internet through 5G/4G mobile communication or a 1000Mbps WAN port, this router redefines the way you connect and share data.
Cutting-Edge Hardware for Superior Performance

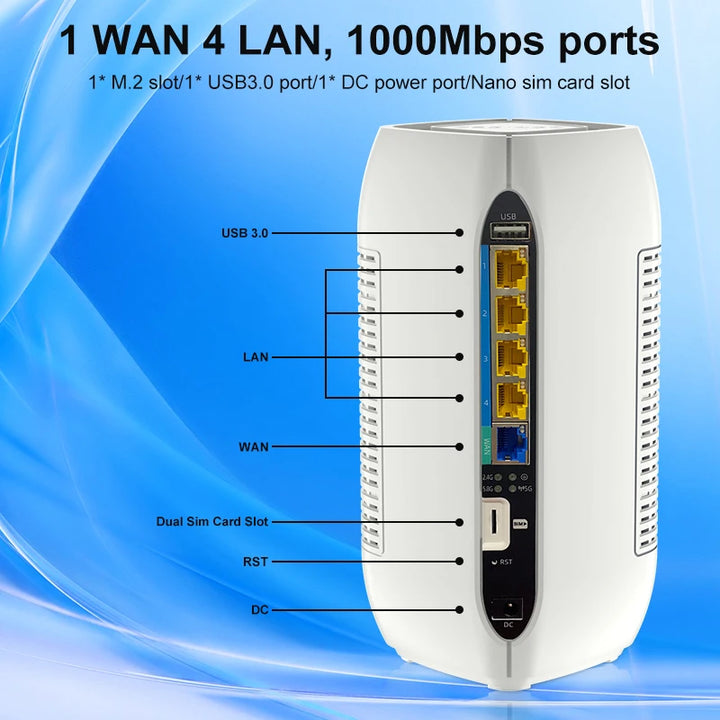

Powered by an ARM Cortex-A53 dual-core CPU clocking at 1.3GHz, the Z8106AX-M2-S ensures seamless operation and blazing-fast speeds. Its hardware features, including multiple LAN ports, M.2 slot, and Nano SIM card slots, offer versatility and expandability for various networking needs. Equipped with nine internal high-gain antennas, this router delivers exceptional signal strength and coverage for uninterrupted connectivity.
Advanced Software Features for Enhanced Control
Take control of your network like never before with Z8106AX-M2-S's advanced software capabilities. With support for OpenWRT and ZBT OS, users can customize and optimize their network settings with ease. From channel and power adjustments to parental controls and VPN support, this router empowers users to tailor their network to their specific requirements, ensuring optimal performance and security.
-
