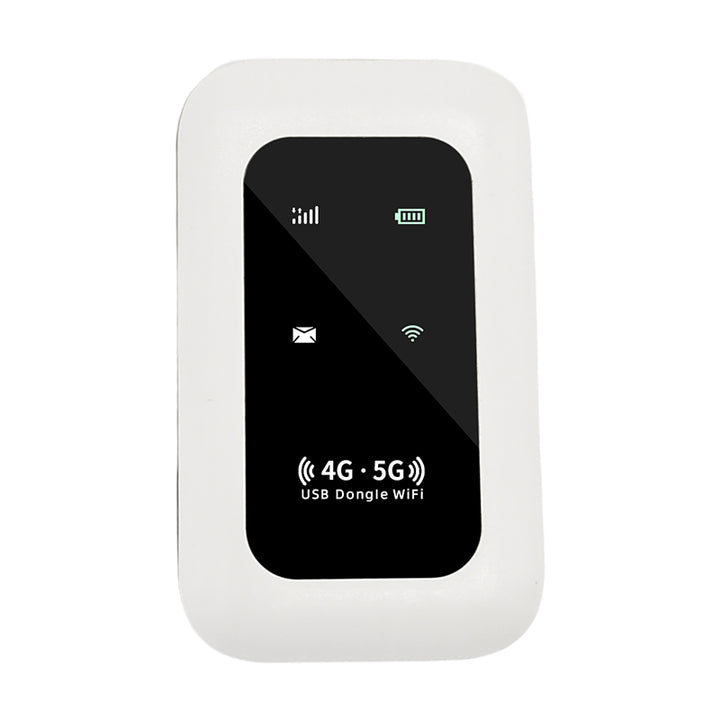

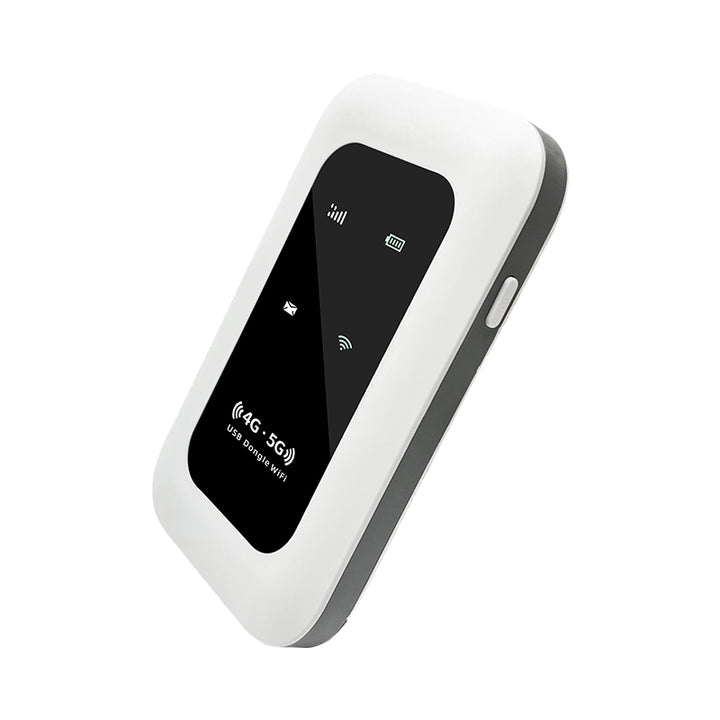

MF07E is a 4G portable WIFI product. It accesses the Internet through 4G mobile communication dial-up and then shares the Internet network through wireless WiFi. It provides 4G wireless data to Wi-Fi terminal equipment for users who need to access wireless networks at any time. The device supports TDD, FDD, and WCDMA network standards. By inserting an eSIM card, 4G signals can be converted into WiFi signals. No matter when and where, your mobile phone, laptop, and Pad can enjoy the world of wireless Internet.
- lAdopt Qualcomm 9X07 solution, Wi-Fi wireless rate 150Mbps
- lWireless standard: 802.11b/g/n 20MHz/40MHz
- lExternal MICRO SIM card (medium card) interface, supports SIM/USIM card
- lBuilt-in high-gain omnidirectional antenna
- lnterface: USB2.0

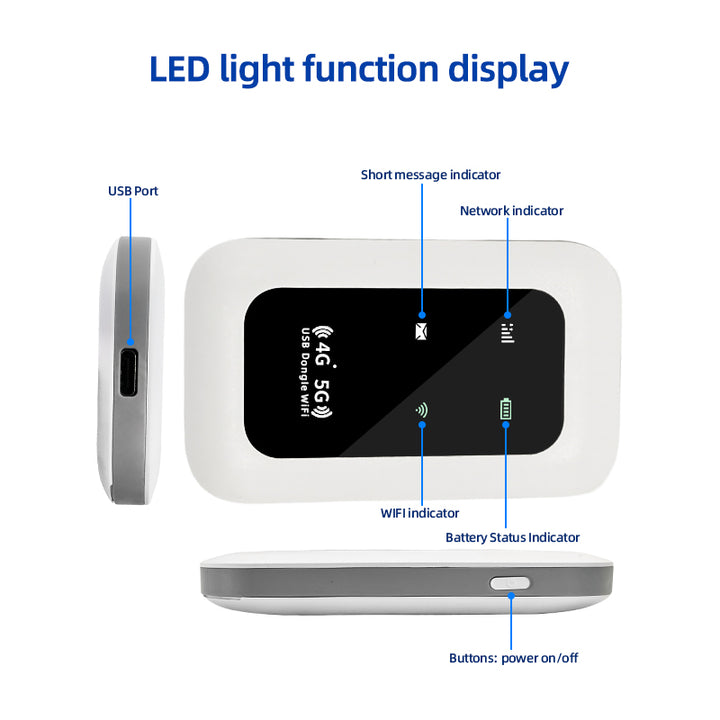

Hardware Interface Introduction
|
CPU |
MDM9607 |
|
2.4G WIFI chipset |
RTL8189ES,MAX 150Mbps |
|
Flash/RAM |
NOR FLASH 128MB |
|
|
512MB RAM |
|
SIM card slot |
Standard Nano SIM interface 1, supports SIM/USIM, compatible with 1.8/3.3V |
|
Power |
USB Type A male 5.0V input |
|
Button |
1. Turn on/off the machine; 2. Reset |
|
Antennas |
2*Built-in 4G antenna (main antenna + tiered antenna) 1*Built-in WiFi antenna |
|
Battery |
2100mAh，Charging 1.0A/5V or above |
|
USB port |
TYPE-C |
4G mobile communication function
|
4G Category |
LTE CAT.4 |
|
3G/4G standard |
FDD LTE |
|
4G Bands |
LTE-FDD:B1/B3/B5/B7/B8/B20/B28 LTE-TDD:B38/B40/B41 WCDMA:B1/B5/B8 |
|
4G Speed |
LTE-FDD DL: 150Mbps, UL: 50Mbps |

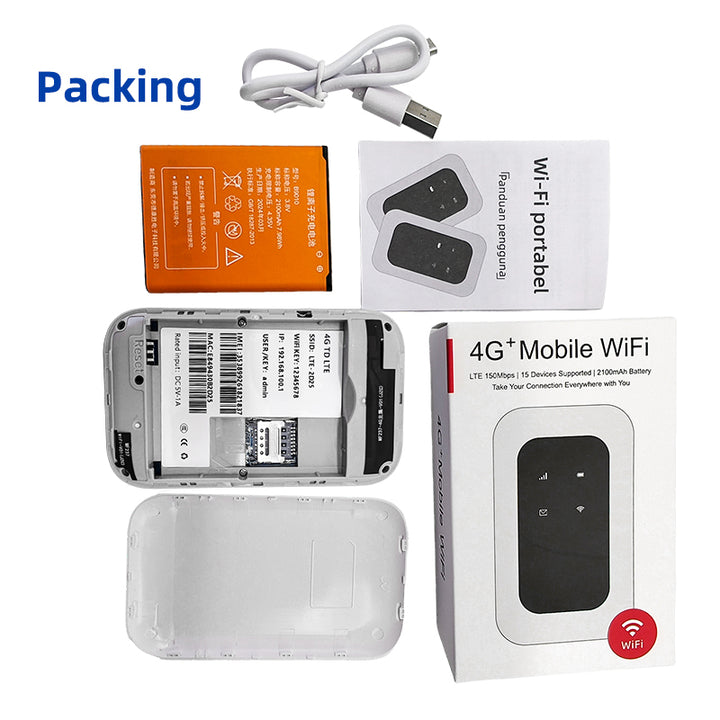

Structural parameters and accessories introduction
|
WG（KG） |
27G |
|
Size |
L*W*H=96MM*54MM*12.5MM |
|
Color |
White |
Product working environment requirements
|
Operating temperature |
0℃ ~ 40℃ |
|
storage temperature |
-40℃~ 70℃ |
|
Working humidity |
10% to 90%RH non-condensing |
|
Storage humidity |
5% to 90%RH non-condensing |
Software configuration information
|
Default IP |
192.168.1.1 |
|
Login PW |
admin |
|
2.4G SSID |
4G UFI XXXX(X is the last 4 digits of the MAC address) |
|
5.8G SSID |
NA |
