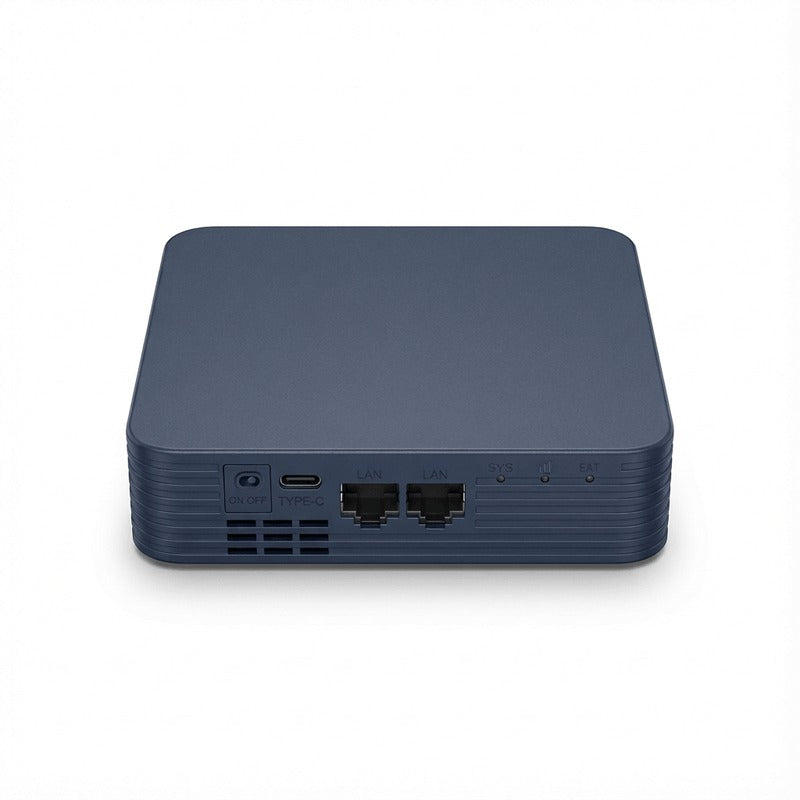

Z8116AX-DS | Mini 5G WiFi 6 CPE Router MT7981B · 2975Mbps · Dual SIM · USB-C · Gigabit

AX2975 Wi-Fi 6: Smooth streaming, gaming, and everyday browsing.

Dual-Core Power: Stable performance across connected devices.

Dual SIM Flexibility: Switch between compatible mobile networks with ease.

Gigabit Ethernet: Fast wired connections through dedicated WAN and LAN ports.

Enter your email at the bottom

Support B2B cooperation and customize solutions

Out of stock

Estimated delivery: Sep 19 - Sep 23

$523.00 USD

Sold out

Type: 5G Module

5G Module

Software Features

Category	Specifications
Model	Z8116AX-DS
Main chipset	MT7981B
CPU	Dual-core ARM Cortex-A53, 1.3GHz
Wi-Fi chipset	MT7976CN
Protocol	IEEE 802.11 a/b/g/n/ac/ax
2.4GHz Wi-Fi rate	Up to 573Mbps
5.8GHz Wi-Fi rate	Up to 2402Mbps
Total Wi-Fi rate	Up to 2975Mbps
Memory / Flash	1GB DDR4 / 128MB SPI NAND Flash
Interfaces	1 × 1000Mbps WAN port; 1 × 1000Mbps LAN port
Power port	1 × USB Type-C; supports 5V/3A, 9V/2A, and 12V/1.5A
Buttons	1 × Reset button; 1 × FN button
SIM card slots	2 × self-ejecting SIM slots; SIM/USIM support
Antennas	2 × omnidirectional 2.4GHz and 5.8GHz dual-band antennas; 4 × omnidirectional 5G antennas
5G module support shown	X62
