ZBTlink Z8102AX-T 5G SA NSA AX3000 WiFi 6 Dual SIM CPE Router

Z8102AX-T Review: 5G SA/NSA + WiFi 6 AX3000 Dual SIM CPE — The Ultimate Home & Office 5G Router

What Is the Z8102AX-T?

The Z8102AX-T is a 5G Wireless CPE (Customer Premises Equipment) router designed to replace or supplement traditional wired internet. It pulls in 5G signals from your carrier and distributes them as fast, stable WiFi throughout your home or office — no technician visit, no cable installation required.

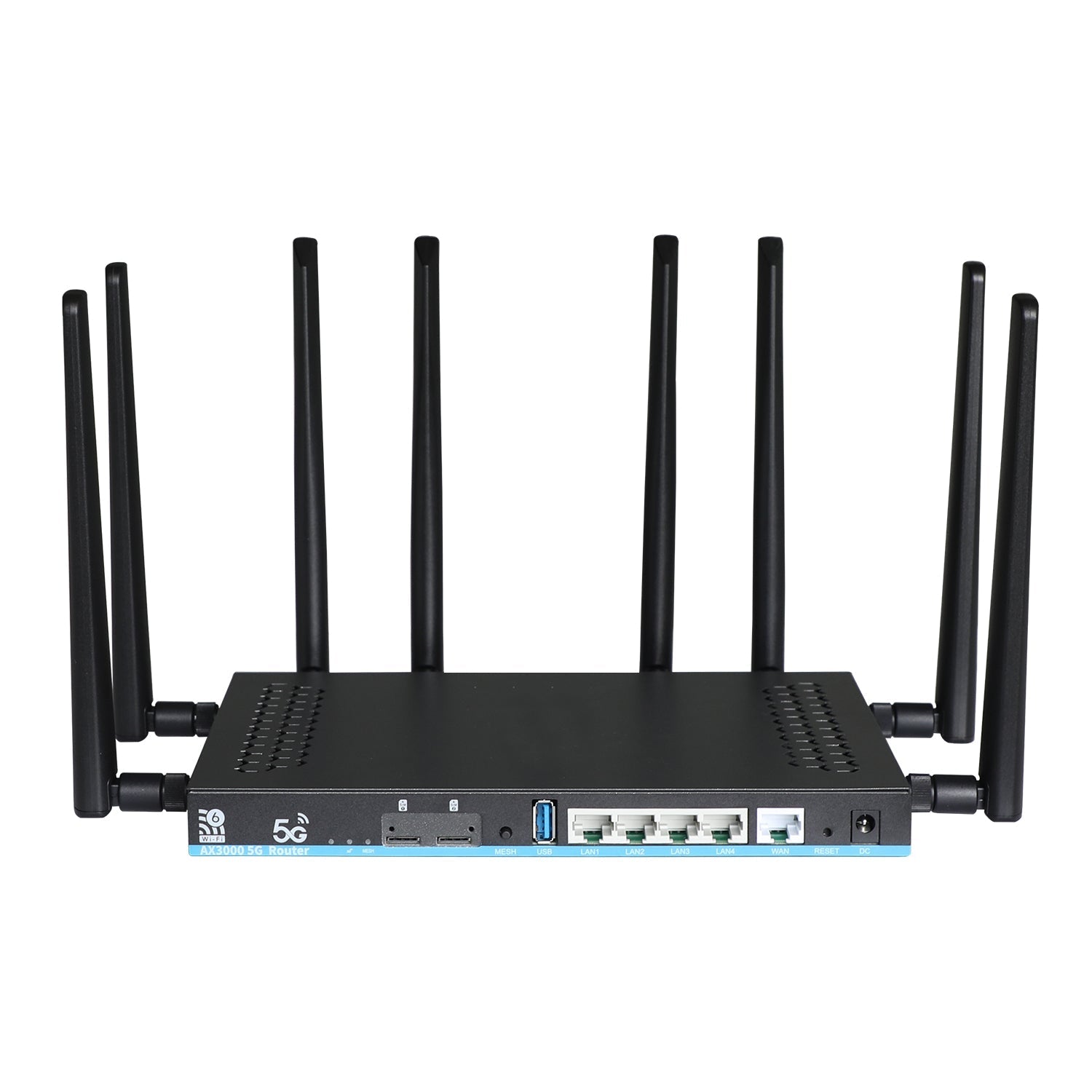

Z8102AX-T front and back view

Key Specifications at a Glance

Processor MediaTek MT7981B ARM Cortex-A53 Dual-Core, 1.3GHz
WiFi Chipset MT7976CN — IEEE 802.11a/b/g/n/ac/ax (WiFi 6)
Max WiFi Speed AX3000 (3000Mbps combined)
WiFi Bands 2.4GHz + 5.8GHz Dual-Band
5G Support SA & NSA (Sub-6GHz)
SIM Slots 2× External Nano SIM + 2× Internal eSIM (QFN-8)
5G Module Slots 2× M.2 Ports
Antennas 8× 5dBi 5G + 2× 5dBi 2.4G + 2× 5dBi 5.8G (12 total)
WAN Port 1× Gigabit (Auto MDI/MDIX)
LAN Ports 4× Gigabit (Auto MDI/MDIX)
USB 1× USB 3.0 Type-A
RAM DDR4 1GB
Flash NOR 16MB / SPI NAND 128MB / eMMC 8GB (optional)
Mesh Support Yes (dedicated MESH button)
Operating Temp 0°C – 40°C

5G SA/NSA: What Does It Mean for You?

The Z8102AX-T supports both 5G Standalone (SA) and Non-Standalone (NSA) modes — giving it maximum compatibility with carrier networks worldwide.

  • NSA (Non-Standalone): Uses existing 4G LTE infrastructure as an anchor while adding 5G for speed boosts. Most current 5G networks operate in this mode.
  • SA (Standalone): Pure 5G core network with ultra-low latency and full 5G capabilities. The future of 5G — and the Z8102AX-T is ready for it.

This dual-mode support means your router won't become obsolete as carriers upgrade their networks.

Z8102AX-T 5G SA NSA connectivity

Dual SIM + Dual eSIM: Never Lose Connectivity

One of the Z8102AX-T's standout features is its 4-SIM configuration: 2 external Nano SIM slots and 2 internal eSIM cards. This enables:

  • Carrier failover: If one carrier goes down, the router automatically switches to the backup SIM
  • Load balancing: Distribute traffic across two carriers for maximum throughput
  • International flexibility: Use local SIMs when traveling without swapping cards
  • IoT & enterprise deployments: Ideal for mission-critical applications requiring redundancy

WiFi 6 AX3000: Next-Generation Wireless

Powered by the MediaTek MT7976CN WiFi 6 chipset, the Z8102AX-T delivers up to 3000Mbps combined across 2.4GHz and 5.8GHz bands. WiFi 6 (802.11ax) brings key improvements over WiFi 5:

  • OFDMA: Serves multiple devices simultaneously, reducing congestion
  • MU-MIMO: Handles multiple data streams at once
  • Target Wake Time (TWT): Extends battery life on connected devices
  • BSS Coloring: Reduces interference in dense WiFi environments

Z8102AX-T WiFi 6 AX3000 performance

12 External Antennas for Maximum Signal

The Z8102AX-T is equipped with an impressive 12 external omnidirectional 5dBi antennas:

  • 8× for 5G mobile communication
  • 2× for 2.4GHz WiFi
  • 2× for 5.8GHz WiFi

This antenna array ensures strong 5G signal reception even in areas with moderate coverage, while delivering robust WiFi throughout your space.

Mesh Networking Built In

With a dedicated MESH button, the Z8102AX-T can be paired with other compatible ZBTlink routers to create a whole-home mesh network. The setup is straightforward: press the MESH button to enter pairing mode, and the devices automatically coordinate to eliminate dead zones.

Z8102AX-T Mesh networking

Who Is the Z8102AX-T For?

Use Case Why It Works
Home Broadband Replacement 5G speeds rival fiber; no installation needed
Home Office Gigabit LAN ports + stable WiFi 6 for video calls and large file transfers
Rural / Remote Areas 5G CPE reaches where fiber doesn't
Small Business Dual SIM failover ensures business continuity
Temporary Sites Plug-and-play deployment, no ISP contract needed
IoT & Surveillance 4× Gigabit LAN + USB 3.0 for NAS and camera systems

Z8102AX-T use cases

Hardware Highlights

  • MT7981B processor — Dual-core ARM Cortex-A53 at 1.3GHz handles routing, WiFi, and 5G processing without bottlenecks
  • DDR4 1GB RAM — Smooth multi-device performance even under heavy load
  • USB 3.0 — Connect external storage for NAS functionality or share files across your network
  • 2× M.2 5G module slots — Flexibility to upgrade or replace 5G modules as technology evolves
  • 1× WAN + 4× LAN Gigabit ports — Full wired connectivity for desktops, NAS, smart TVs, and more

Final Verdict

The ZBTlink Z8102AX-T is a powerhouse 5G CPE that checks every box for demanding home and business users. With 5G SA/NSA support, WiFi 6 AX3000, dual SIM + dual eSIM redundancy, 12 external antennas, mesh networking, and a robust MT7981B processor — it's built to handle today's connectivity demands and tomorrow's network upgrades.

If you're ready to experience true 5G home internet, the Z8102AX-T is the router to get.
